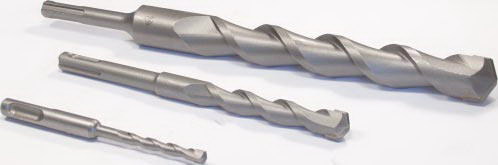

SDS PLUS SHANGK ELECTRIC HAMMER DRILL BITS

Manufacturing process: milled

Point angle: 130º  Flute: single

Material: 40Cr, tungsten carbide

Finish: Sandblasted, Zine-coated, Ni-coated

Diameter: 4-30mm

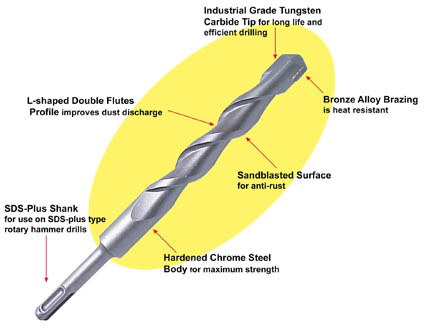

Extremely robust fast drilling bit for SDS Plus systems
 with brazed carbide tip & shot blast finish. Ideal for
 efficient drilling in concrete, granite, brick etc.
 DIN 8035

　

 Single Flutes

 Double Flutes(S4)

Double Flutes(S4) With Triangle Tip

Double Flutes(S4) With Cross Tip

　

　
Diameter x Overall Length Working Code Length Diameter x Overall Length Working Code Length
4.0 x 110mm 45mm 13.0 x 160mm 80mm
4.0 x 160mm 95mm 13.0 x 210mm 130mm
5.0 x 110mm 45mm 13.0 x 260mm 180mm
5.0 x 160mm 95mm 13.0 x 300mm 220mm
5.0 x 210mm 147mm 13.0 x 460mm 380mm
5.0 x 310mm 247mm 14.0 x 160mm 80mm
5.5 x 110mm 45mm 14.0 x 200mm 120mm
5.5 x 160mm 95mm 14.0 x 260mm 180mm
5.5 x 210mm 147mm 14.0 x 300mm 220mm
5.5 x 260mm 197mm 14.0 x 460mm 380mm
5.5 x 310mm 247mm 14.0 x 600mm 520mm
6.0 x 110mm 45mm 14.0 x 1000mm 920mm
6.0 x 160mm 97mm 15.0 x 160mm 80mm
6.0 x 210mm 147mm 15.0 x 200mm 120mm
6.0 x 260mm 197mm 15.0 x 260mm 180mm
6.0 x 460mm 397mm 15.0 x 460mm 380mm
6.5 x 110mm 45mm 16.0 x 160mm 80mm
6.5 x 160mm 97mm 16.0 x 200mm 120mm
6.5 x 210mm 147mm 16.0 x 250mm 180mm
6.5 x 260mm 197mm 16.0 x 300mm 230mm
7.0 x 110mm 45mm 16.0 x 460mm 380mm
7.0 x 160mm 97mm 16.0 x 600mm 520mm
7.0 x 210mm 147mm 16.0 x 800mm 720mm
8.0 x 110mm 45mm 16.0 x 1000mm 920mm
8.0 x 160mm 97mm 17.0 x 200mm 120mm
8.0 x 210mm 147mm 18.0 x 200mm 120mm
8.0 x 260mm 197mm 18.0 x 250mm 175mm
8.0 x 310mm 247mm 18.0 x 300mm 220mm
8.0 x 460mm 397mm 18.0 x 460mm 380mm
8.0 x 610mm 545mm 18.0 x 600mm 520mm
9.0 x 160mm 97mm 18.0 x 1000mm 920mm
9.0 x 210mm 147mm 19.0 x 200mm 120mm
10.0 x 110mm 45mm 19.0 x 460mm 380mm
10.0 x 160mm 97mm 20.0 x 200mm 120mm
10.0 x 210mm 147mm 20.0 x 300mm 220mm
10.0 x 260mm 197mm 20.0 x 460mm 380mm
10.0 x 310mm 247mm 20.0 x 600mm 520mm
10.0 x 360mm 297mm 20.0 x 1000mm 920mm
10.0 x 460mm 397mm 22.0 x 250mm 175mm
10.0 x 600mm 537mm 22.0 x 450mm 370mm
10.0 x 1000mm 937mm 22.0 x 600mm 520mm
11.0 x 160mm 95mm 22.0 x 1000mm 920mm
11.0 x 210mm 145mm 24.0 x 250mm 175mm
11.0 x 260mm 195mm 24.0 x 450mm 370mm
11.0 x 300mm 235mm 25.0 x 250mm 175mm
12.0 x 160mm 85mm 25.0 x 450mm 370mm
12.0 x 210mm 135mm 25.0 x 600mm 520mm
12.0 x 260mm 185mm 25.0 x 1000mm 920mm
12.0 x 310mm 235mm 26.0 x 250mm 175mm
12.0 x 460mm 385mm 26.0 x 450mm 370mm
12.0 x 600mm 525mm 28.0 x 450mm 370mm
12.0 x 1000mm 920mm 30.0 x 460mm 380mm
