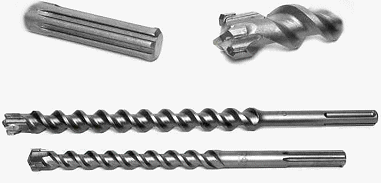

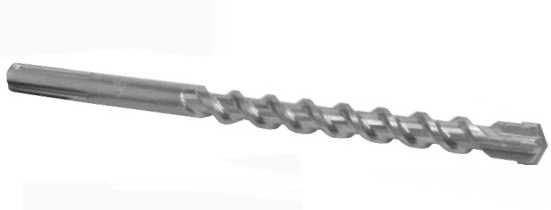

SDS MAX HAMMER DRILL BITS

Features include:

  • Fast drilling professional bit for SDS Max systems

  • Multi Cutter design (5/8" and above) for faster drilling, longer life and rounder holes

  • Double narrow land flute design for faster dust extraction, less vibration, less friction and more impact energy to the tip

  • Tool shaft is heat treated, annealed and shot peaned for longer life

  • Premium grade hammer carbide for use with heavy duty hammers

  • Made to ANSI standards

  • holes from 12mm to 40mm

Applications include:

  • Concrete

  • Hard Aggregate

  • Granite & Marble

Diameter x Overall Length Working Code Length Diameter x Overall Length Working Code Length
12.0 x 340mm 200mm 22.0 x 520mm 400mm
12.0 x 540mm 400mm 22.0 x 920mm 800mm
13.0 x 390mm 250mm 24.0 x 320mm 200mm
13.0 x 540mm 400mm 24.0 x 520mm 400mm
14.0 x 340mm 200mm 25.0 x 320mm 200mm
14.0 x 540mm 400mm 25.0 x 520mm 400mm
15.0 x 340mm 200mm 25.0 x 920mm 800mm
15.0 x 540mm 400mm 26.0 x 370mm 250mm
16.0 x 340mm 200mm 26.0 x 520mm 400mm
16.0 x 540mm 400mm 28.0 x 370mm 250mm
16.0 x 920mm 770mm 28.0 x 570mm 450mm
18.0 x 340mm 200mm 30.0 x 370mm 250mm
18.0 x 540mm 400mm 30.0 x 570mm 450mm
19.0 x 390mm 250mm 32.0 x 370mm 250mm
19.0 x 540mm 400mm 32.0 x 570mm 450mm
20.0 x 320mm 200mm 32.0 x 920mm 800mm
20.0 x 520mm 400mm 35.0 x 570mm 450mm
20.0 x 920mm 800mm 38.0 x 570mm 450mm
22.0 x 320mm 200mm 40.0 x 570mm 450mm
