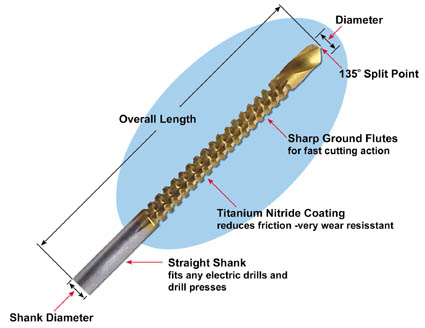

HSS Saw Drills

  • Multi function bit drills, saws, and reams brass, aluminum, wood and plastics.

  • Cross ground cutting edges for rapid, non clog cutting.

  • Fits any electric drill or drill press. Cuts own starting hole and any sharp in any direction tool is moved.

  • 135° splint point,Dia.6 and 8mm Length:90mm,Other sizes available.

  • For milling any type of contour in thin-walled materials.

  • Suitable for metal, wood, plastics



Diameter (mm)  Drilling depth (mm)
Length (mm)
1.0-1.5  17 38
1.6-1.7  20 43
1.8-1.9  22 46
2.0-2.1  24 49
2.2-2.3  27 53
2.4-2.6  30 57
2.7-3.0  33 61
3.1-3.3  36 65
3.4-3.7  39 70
3.8-4.2  43 75
4.3-4.7  47 80
4.8-5.3  52 86
5.4-6.0  57 93
6.1-6.7  63 101
6.8-7.5  69 109
7.6-8.5  75 117
8.6-9.5  81 125
9.6-10.5  87 133
11-11.5  94 142
12 101 151
12.1-14  121 151
